PE,PEX Series Single Toggle Jaw Crusher has the features of great crushing ratio,uniform siges of promance. It can be used to crush material its compressive resistance not more than 320 Mpa. PE series is used in primary crushing, PEX series is used in secondary crushing and fine crushing.

Jaw crushers are often used as primary crushers and are perhaps the most popular crusher worldwide. These compressive crushers are suitable for most any type of material.

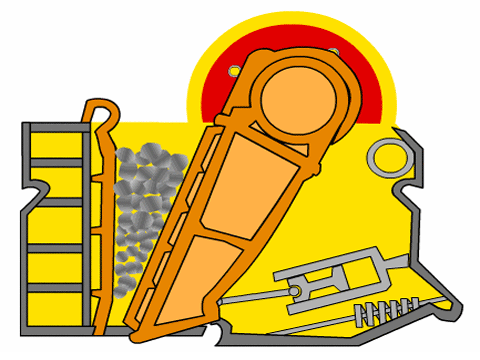

In this type of crusher, reduction takes place between a stationary jaw plate and a moving jaw plate. The moving jaw plate is mounted on the pitman, which is given a reciprocating motion. Crushing takes place when the pitman moves toward the stationary jaw, compressing the material.

The Features and Benefits of Jaw Crusher:

1.Simple structure and reliable operation
2.Easy maintenance and low operating cost
3.The frame of jaw crusher is very firm due to removing welding residual stress

Jaw crusher composition-structure

It is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.

Jaw crusher special remarks:

Please carefully examine the fasteners, especially lubrication components and bolts, before the machine is started. Enough oil must be needed on each lubrication component. Fasten the loose bolts, clear the crushing cavity, and then start the machine. During the normal operation, even material feeding is important. Insufficient load or over load is not allowed. Moving jaw plate, fixed jaw plate, side guard plate and roof plate are wearing parts, and much attention should be paid to them.

Sanme offers complete jaw and cone crusher systems designed specifically to meet your crushing needs. We have a wide range of cone crusher and jaw crusher models to handle various type of aggregate product and process capacities. Jaw crusher sizes are available from 25x40 to 120x150. Please refer to the jaw crusher chart for more details. Contact a YIFAN engineer today for your jaw crusher inquiries.

Working Principle of pe/pex jaw crusher:

This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.

Jaw Crusher

Technical Parameter of PE/PEX Jaw Crusher

Model Size of Feed Opening(mm) Max Feed Size (mm) Discharge Range Opening (mm) Capacity (m3/h ) Motor Power(kw)
PE-250×400 250×400 210 20-60 3-13 15
PE-400×600 400×600 340 40-100 10-35 30
PE-500×750 500×750 425 50-100 25-60 55
PE-600×900 600×900 500 65-180 30-85 55- 75
PE-750×1060 750×1060 630 80-180 72-150 110
PE-800×1060 800×1060 680 100-200 85-143 110
PE-870×1060 870×1060 750 170-270 145-235 110
PE-900×1060 900×1060 780 200-290 170-250 110
PE-900×1200 900×1200 780 95-225 100-240 110
PE-1000×1200 1000×1200 850 195-280 190-275 110
PE-1200×1500 1200×1500 1020 150-300 250-500 160
PEX-150×750 150×750 120 18-48 5-16 15
PEX-250×750 250×750 210 25-60 8-22 22
PEX-250×1000 250×1000 210 25-60 10-32 30-37
PEX-250×1200 250×1200 210 25-60 13-38 37
PEX-300×1300 300×1300 250 20-90 10-65 75
